Multiple Size Security X Ray Machine , Airport Security Baggage Scanners 80 Degree Generate Angle security scanner mach

Name: Multiple Size Security X Ray Machine Airport Security Baggage Scanners 80 Degree Generate Angle security scanner mach
Brand: SECUERA
Price: 1 USD

Multiple Size Security X Ray Machine , Airport Security Baggage Scanners 80 Degree Generate Angle security scanner mach Manufactures

Brand Name : SECUERA

Model Number : SE10080C

Certification : CE,FCC,ROHS,ISO

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 800 pcs per month

Delivery Time : 5-7 days after payment

Packaging Details : wooden packing

Size : L1800*W1300*H1650mm

Tunnel size : 1000(W)*800(H) mm

Through resolution : 0.511mm

Speed of the be : 0.22m/s

Beam direction : light from top

spread Angle : 80°

Tube current : 0.4~1.2mA (adjustable)

Warranty : 24 months

Contact Now

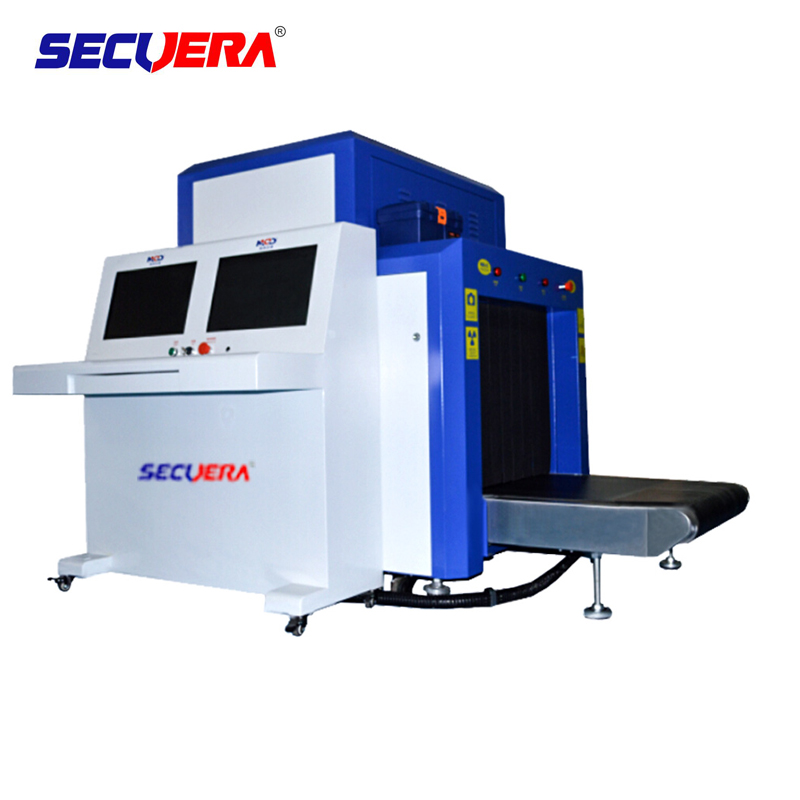

SE10080 Airport X-Ray Baggage Scanner X Ray Security Scanner Equipment

Main Features:

Tunnel size	1000 (W) * 800 (H) mm
Rated power	500W
Rated load	250kg (evenly distributed)
Conveyor height	30cm
Transmission mode	Electric drum
Conveyor thickness	3.0mm
Transport speed	standard 0.22M/S, adjustable speed
Radiation direction	Top-illuminated
Penetration	38mm thick
Penetration resolution	34AWGΦ0.160mm
Line resolution	resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current	140KV/0.5mA
Leakage rate	<1.0μGy/h from the outer surface of the casing at 5CM
Single dose	radiation dose <1.5uGy
Net weight	550Kg
Product volume	320131172(cm)
Ray beam divergence angle	80 degrees
Equipment noise level	<55db
Pass rate	720 / h ~ 1500 / h
Leakage current	<0.5mA
Cooling	Sealed circulating oil cooled, 100
Work cycle	full cycle, need to be cooled
Rated voltage	AC 220V 50HZ (±10%)
Film Safety	ISO1600 Film Safety
Working temperature / humidity	-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity	-20 ° C ~ 60 ° C / 20% -95% (non-condensing)

X-ray generator:
Beam direction: light from top
Tube current: 0.4~1.2mA (adjustable)
Tube voltage: 100--160 KV (adjustable)
Spread Angle of the ray beam : 80°
Cooling/work cycle : Sealed oil cooling/100%

Image processing system:
X ray sensor : L photoelectric diode array detector(multi energy), 12bit depth
Display : High resolution 17 "LCD display
Color image display : According to the material is qualitative, 24 bits true color display
Edge enhancement : The object contour edge clearer
Super image enhancement : Image detail more clearly
High penetration show : Improve the image of the bright contrast, make easy penetration area more clearly
Low penetration show : Improve the image of the dark contrast, make difficult to penetrate area more clearly
Magnifier: Local amplification function, real-time dynamic amplification
Brightening/darken: Increase the brightness of the image/Reduce the brightness of the image
Image back to pull: Before the show and image, and the image can be any image processing
Image restoration: Image display restore the original state
Image storage: Real-time save any image, and can be arbitrary image processing, continuous work save
Multi energy color: Organic display for orange, Inorganic display for blue, Mixture display for the green
High energy/Low energy: Two kinds of energy switch display
Drug and explosive auxiliary detection: Some of the more typical auxiliary detection of drugs
and explosives and other dangerous articles
